CAPACITOR FILM

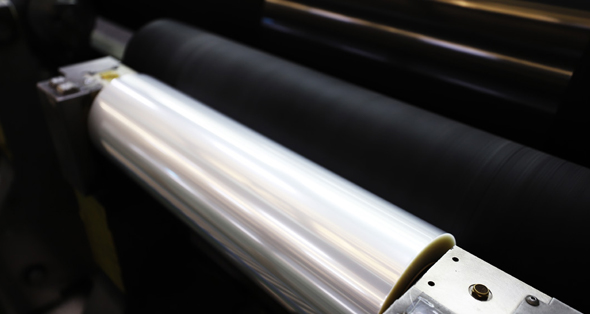

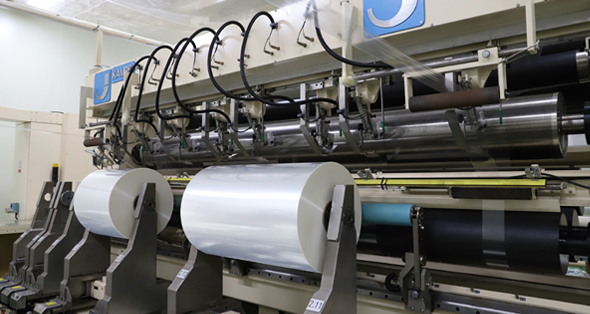

SYC capacitor film delivers excellent consistency and property of film thickness in the Tenter engineering. The first PP film for capacitor in Korea developed based on our film experience and technologies accumulated for the last 25 years delivers excellent consistency and property of film thickness as one oriented film in the Tender engineering, In particular, ultra- thin film (under 3.0㎛) is a technology that can be produced only in the world's advanced countries, and SYC has contributed greatly to the development of the domestic film industry by succeeding production in the world.
Ultra-thin capacitor film is used as one of the core components of the hybrid car. SYC is making efforts to lead the world market by developing and manufacturing ultra-thin film with 2.5㎛ or less within the shortest time based on accumulated technology The ultra-thin, heat-resistant polypropylene bi-axially oriented film is a film that is dieerentiated in terms of both internal and external properties from the commercially available polypropylene film for capacitors larger than 4.0㎛.
Capacitor film for hybrid car, EV, FCEV, PHEV has more than 30% of thermal durability compared to existing film, and it is a special film that has greatly improved heat resistance mechanical strength, and electrical characteristics, and reduces both the size and weight of the capacitor.
hybrid car
PHEV(Plug-in Hybird Electric Vehicles)plug-in hybrid car
electric car
FCEV(Fuel Cell Electric Vehicles)hydrogen fueled electric vehicle
Thickness(㎛) | Width(mm) | Length(m) |
---|---|---|
2.3 | 620 | 24,000~60,000 |
2.5 | 620 | 24,000~60,000 |
2.8 | 620 | 24,000~60,000 |
3.0 | 620 | 24,000~60,000 |
3.2 | 620 | 24,000~60,000 |
3.5 | 620 | 24,000~60,000 |
4.0 | 450~1,100 | 24,000~60,000 |
4.5 | 450~1,100 | 24,000~53,000 |
5.0 | 450~1,100 | 24,000~47,000 |
5.5 | 450~1,100 | 24,000~43,000 |
Thickness(㎛) | Width(mm) | Length(m) |
---|---|---|
6.0 | 450~1,100 | 20,000~39,000 |
6.5 | 450~1,100 | 19,000~36,000 |
7.0 | 450~1,100 | 17,000~33,000 |
7.5 | 450~1,100 | 16,000~31,000 |
8.0 | 450~1,100 | 15,000~30,000 |
9.0 | 450~1,100 | 14,000~26,000 |
10.0 | 450~1,100 | 12,000~23,000 |
11.0 | 450~1,100 | 11,000~21,000 |
12.0 | 450~1,100 | 10,000~20,000 |
13.0 | 450~1,100 | 9,000~18,500 |
